When talking about transom height Many owners think it's a minor detail. In reality, this measurement directly affects the boat's behavior. The positioning of the outboard motor depends precisely on this value and cannot be improvised. Each hull has a precise balance between the hull, waterline, and propeller. Those who sail with the correct trim notice it immediately. The throttle response is more linear and planing occurs without excessive effort. However, when the height is not consistent with the hull design, the difference is noticeable, even if sometimes only after a few outings.
Why is transom height important for your outboard motor?
Correct engine installation always starts with the transom measurement. Installing the outboard motor It must comply with the instructions of the hull builder and those of the engine manufacturer. When these two pieces of information coincide, the result is balanced.
Height affects overall performance. The boat accelerates more cleanly and can become a faster boat. if the design allows it. Fuel consumption also remains under control because the propeller operates in the correct position. Manoeuvrability in port improves, and engine life tends to be more consistent over time.
If installation is not correct, problems such as cavitation or overheating may occur. In some cases, the foot wears out, and the transom is subjected to unexpected stresses. Understanding these aspects helps both buyers and sellers on Trovobarche.it, because a complete listing must also include the transom height and the length of the installed stem.
Short, long, extra-long, or ultra-long stems: the differences and how to identify them
Outboard Motor Anatomy: Where to Measure the Shaft
The length of the shaft is measured from the point where the motor rests on the transom to the lower edge of the anti-cavitation plate. This reference is precise and should not be confused with the total length of the lower. The end point of the measurement is the plate located just above the propeller.
This distance is key to proper outboard motor positioning. If the shaft measurement doesn't match the actual transom height, the propeller won't operate in the ideal area.
Different shank lengths and their applications
- The short shank measures approximately 38cm / 15” and is suitable for low transoms and small open hulls, including some types of lightweight fishing boats.

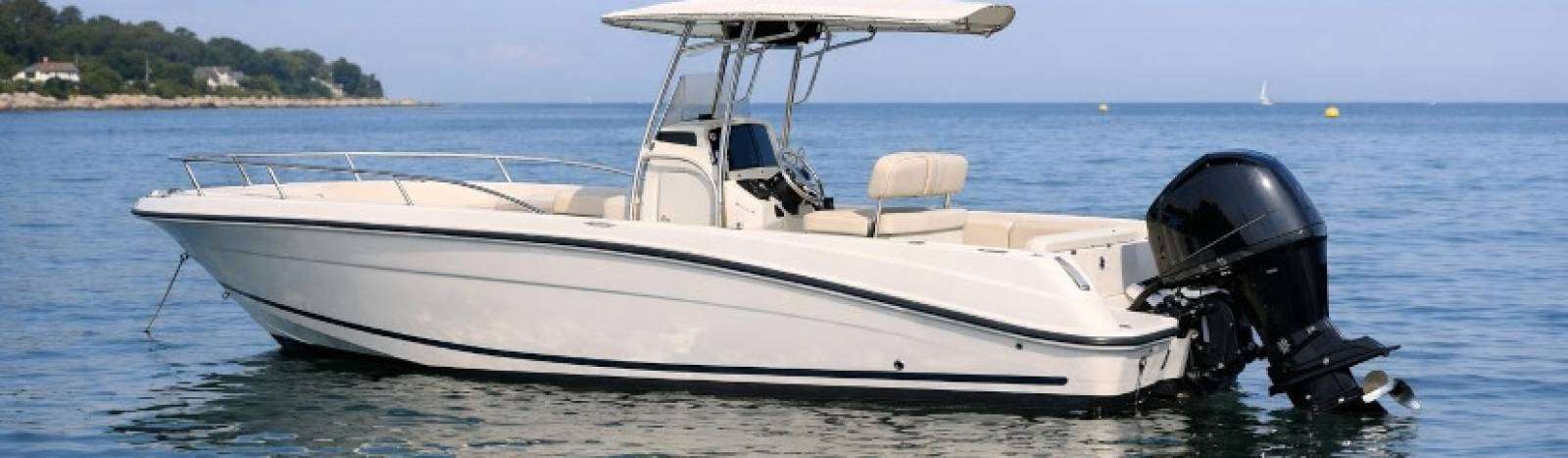

- The long shaft measures approximately 50-51 cm / 20” and is very popular on open and center console boats, found among the best medium-sized best motorboats.
- The extra-long shank measures approximately 63-64cm / 25” and is often used on sailing boats and several professional fishing boats.
- The ultra-long stem measures approximately 76cm / 30” and is designed for very high transoms, typical of fast yachts.
The owner is not free to choose the shaft length. The boat's design dictates which size is compatible, and the manufacturer's recommendations must be followed.

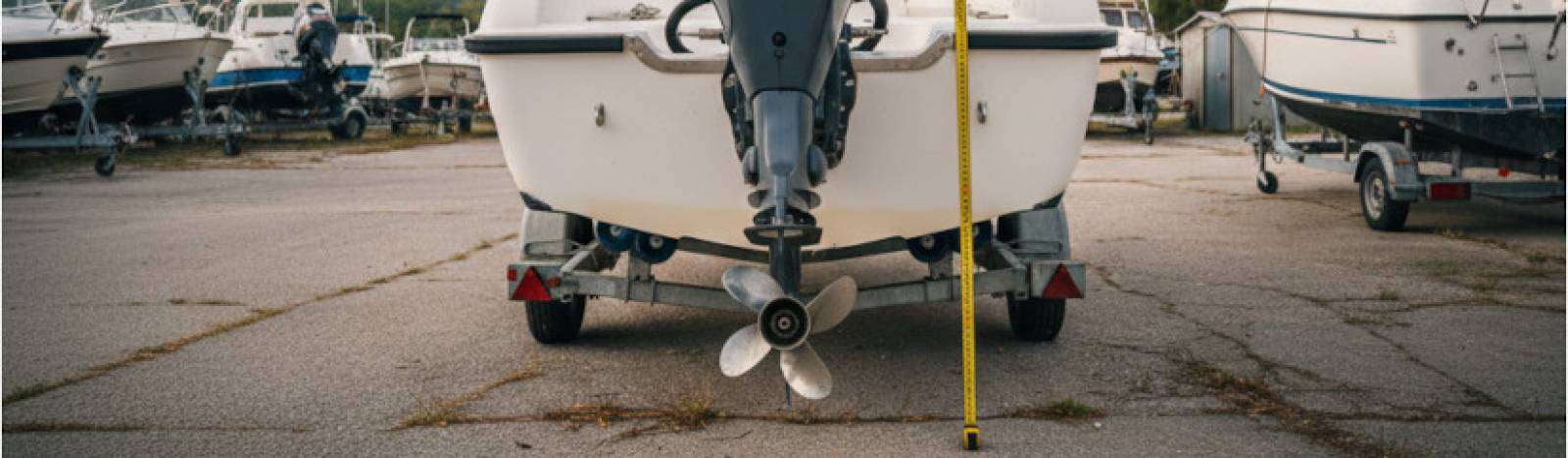

How to Correctly Measure Your Boat's Transom Height
To measure the transom height, the boat must be level. The owner should take a rigid tape measure and measure the vertical distance from the highest point of the engine support to the lowest point of the hull, on the central axis . This line must be perfectly vertical.
It's a good idea to repeat the measurement to avoid errors. Some mirrors aren't perfectly uniform, and additional checking prevents inaccuracies. The boat's technical manual often provides the recommended measurement and makes it easier to install the outboard motor .
The ideal installation: the anti-cavitation plate and the hull
In the standard configuration, the anti-cavitation plate should be aligned with the bottom of the hull. The propeller shaft should remain parallel to the water surface during normal cruising. This position ensures smooth operation.
Some technicians may suggest small adjustments. A low-powered engine can operate slightly lower. Those seeking a fast boat may consider raising the boat slightly to improve planing, but always following precise instructions. The outboard motor's tilt also affects the overall trim and must be adjusted carefully.
When installed correctly, resistance decreases, gliding becomes smoother, and maneuverability increases. Overall transmission wear remains low over time.
What happens if the outboard motor's height is incorrect? The risks and consequences
Outboard motor too low
When the engine is mounted too low, the immersed surface area of the lower unit increases. The boat struggles to gain speed and fuel consumption increases. Spray at the stern becomes more noticeable and acceleration response decreases.
The shaft is more exposed to impacts against the seabed or submerged objects. This condition can affect the life of the mechanical components.
Outboard motor too high
When the engine is mounted too high, propeller cavitation can occur. In this situation, an air pocket forms around the propeller and the thrust decreases. The engine revs higher, but the boat doesn't accelerate proportionally.
Cavitation generates vibrations and noise and can stress the transmission. Furthermore, the cooling system may receive less water, resulting in a risk of overheating. During powerboat testing, these effects are especially evident at high speeds.
Specific recommendations for engine height on inflatable boats and sailboats
For the dinghies
Inflatable boat owners must consider the weight carried, the number of passengers, and sea conditions. A small boat reacts differently than the largest inflatable boat in the world, which follows completely different design criteria. A variable load changes the trim and may require careful adjustment of the height or tilt. Some outboard models offer more flexible solutions to adapt to different uses.
For sailing boats and yachts
The Sailboats often have a higher transom than open boats. This feature requires the use of extra-long or ultra-long shafts, so that the propeller remains submerged even in rough seas.
On large yachts, proper height ensures smooth operation even in the presence of rolling and pitching.
Installing multiple outboard motors: propeller height and rotation
Some owners choose dual or triple engines to increase power and improve safety. In the event of one engine failure, the vessel can return to shore with the other engines. The engines installed must be identical in power, displacement, and model. This choice allows for balanced performance.
When multiple engines are used, engineers often mount the propellers slightly lower, about 2-3 cm, to compensate for the tilt during turns. The propeller rotation can be standard or counter-rotating on one of the engines. This configuration improves stability and maneuverability, especially on high-performance hulls and some of the best powerboats.
Find the perfect boat on Trovobarche.it
If you're looking for a new boat or used boat, you can browse the listings on Trovobarche.it. If possible, always remember to check the transom height and the length of the installed engine shaft. The nautical industry professionals on the portal can help you choose the right hull and engine combination.
FAQ
How do you measure the transom height?
You need to measure the vertical distance from the top of the engine mounting point to the lowest point of the hull, along the central axis. This measurement allows you to determine the required stem length.
What is the best outboard shaft length for my boat?
The length of the stem depends on the height of the transom. A transom of about 15 inches (38 cm) requires a short stem, one of about 20-20 inches (50-51 cm) requires a long stem, while taller transoms, typical of sailboats or yachts, require extra-long or ultra-long stems. The anti-cavitation plate must align with the bottom of the hull.
What happens if the outboard motor is mounted at the wrong height?
If the engine is mounted too high, the propeller can cavitate and the engine can overheat. If the engine is mounted too low, resistance and fuel consumption increase, and the risk of hitting the bottom increases. In both cases, performance and cruising comfort are compromised.
