The importance of correct outboard motor assembly
A properly installed outboard motor directly impacts the engine's safety, fuel economy, and longevity. On Trovobarche.it, a boat with a properly installed motor is worth more: it attracts more buyers, generates more interaction, and is easier to sell.
Preparing for assembly: what to know before starting
Choosing the right engine for your boat
The choice depends on the type of the vessel and structure of the boat: hull length, full-load weight, and intended use determine the maximum recommended power. Anyone looking to buy a used inflatable boat should check the hull's CE rating before making any purchase. The mast length is chosen by measuring the height of the transom: up to 38 cm, the short shaft (S) is used, around 51 cm, the long shaft (L), and over 63 cm, the extra-long (XL) or super-extra-long (XXL).
Tools and materials needed
To install the outboard motor, you'll need a drill with bits appropriate for the hull material, torque wrenches, marine sealant, stainless steel bolts and nuts, and the manufacturer's installation kit. Having everything on hand before you begin avoids unnecessary interruptions.
Regulations and safety
Check the regulations of the Recreational Boating Code and use suitable personal protective equipment during the operation. Always work on a stable surface.
The outboard motor assembly process step by step
Initial positioning and marking of holes
Center the engine on the transom and mark the drilling points precisely. The anti-ventilation plate must remain aligned with the bottom of the hull.
Drilling the transom
Use drill bits suitable for the material and immediately seal each hole with marine sealant to prevent water infiltration and structural damage.
Engine mounting
Insert the stainless steel bolts and tighten them to the manufacturer's recommended torque using a torque wrench. Add additional brackets if your mirror requires them.
Essential connections (fuel, electrical, steering, throttles)
Connect the tank, filters, and fuel lines, complete the electrical wiring-battery, dashboard, and starter-and install the steering and throttles. Check every connection before putting the vehicle in the water.
Engine height optimization for maximum performance and efficiency
Determining the optimal height: theory and practice

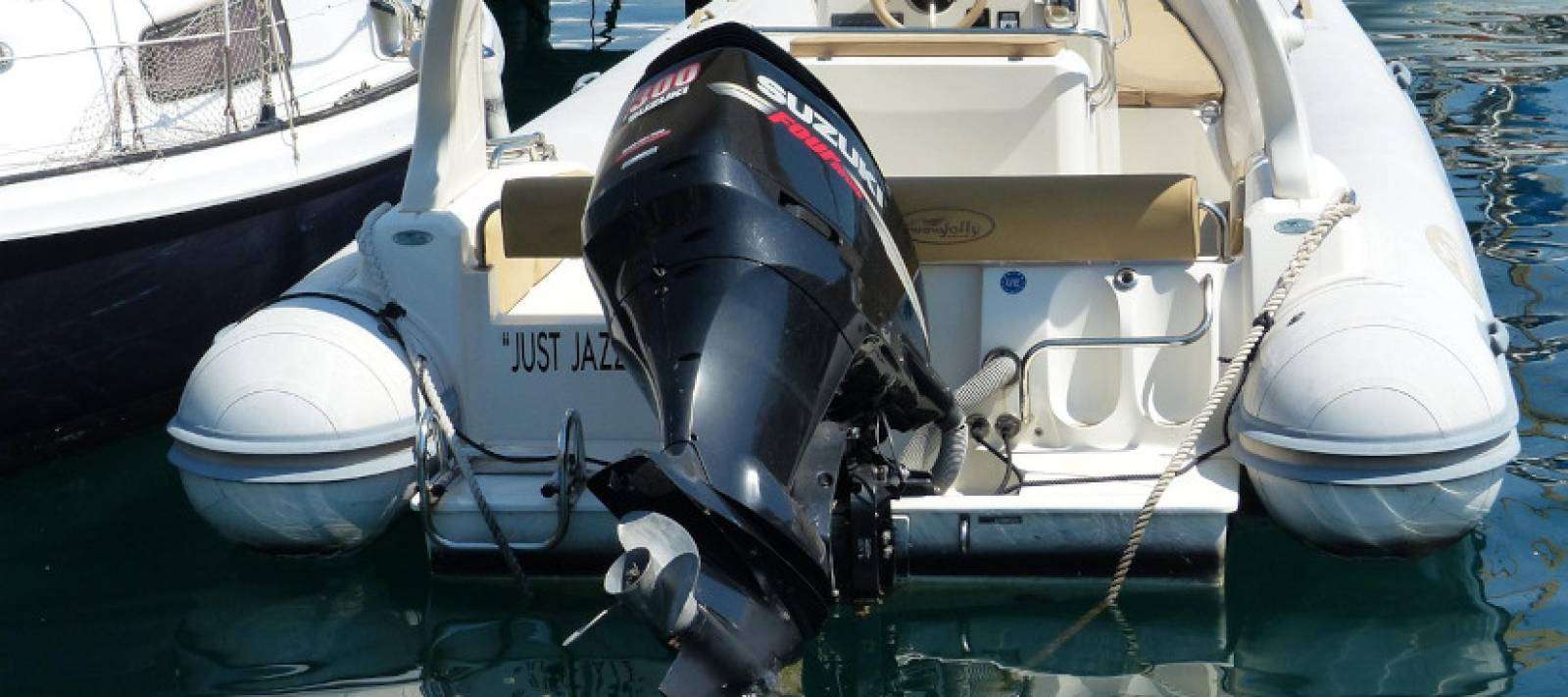

The outboard motor's positioning is adjusted using the holes on the mount, spaced approximately 2 cm apart. A stick placed against the hull allows you to quickly check that the anti-ventilation plate is flush with the bottom of the hull. The outboard motor tilitng affects its response when cornering and stability when planing.
Impact of height on performance
Correct height reduces hydrodynamic drag, increases RPM, and top speed. The best racing motorboats exploit this principle to the fullest, and it is also a key parameter in powerboat testing on any fast boat.
Advantages and disadvantages of different mounting heights
An engine mounted too high creates excessive ventilation at the propeller and makes planing difficult. An engine mounted too low increases fuel consumption and slows the boat down with unnecessary drag and spray. The exception is slow-speed fishing boats, where a slightly lower mounting offers greater operating stability.
The role of the propeller and its position
The distance between the propeller and the transom affects the ideal engine height. A larger diameter propeller often requires raising the engine to keep the anti-ventilation plate in the correct position, and the differences between various outboard models can be significant.
Post-assembly testing and inspection
Water tests and data collection
During your first outings, monitor top speed, RPM, and fuel consumption. Observe the propeller behavior during acceleration, planing, and turns to detect ventilation or cavitation.
Final adjustments and fixings
If something doesn't feel right, readjust the engine height by moving the bolts into the available holes. After your first few rides, always recheck the tightening: the bolts tend to settle with use.
Maintenance and periodic checks
Visual and functional inspection
Periodically check the integrity of the transom and mounting bolts, check electrical connections and fuel lines, and lubricate moving parts. Regular maintenance prolongs the life of the engine and maintains performance over time.
When to call a professional
Abnormal vibrations, sudden drops in performance, or unusual noises indicate the need for expert intervention. With a bit of luck, on Trovobarche.it you can find listings from professionals in your area who offer maintenance, assistance, and support to boat owners.
FAQ
Why is outboard motor mounting height so important to boat performance?
The height at which you mount the engine changes everything: speed, fuel consumption, and handling. If the engine is too low, the hull encounters more resistance and water splashes everywhere. If it's too high, however, the propeller begins to take in air-this is called ventilation-and the boat struggles to plane. Finding the right spot isn't a detail; it's the foundation for successful and safe sailing.
Who can help me with the initial assembly or subsequent height adjustment of the outboard motor?
This isn't a one-and-done job. To properly align the propeller with the keel, you need to consider the length of the shaft, the height of the transom, and the type of boat: three variables that, if mismanaged, can lead to real problems on the water. A qualified marine technician can make this assessment in a few minutes, often saving days of later corrections.
